Machine Cutting Paper

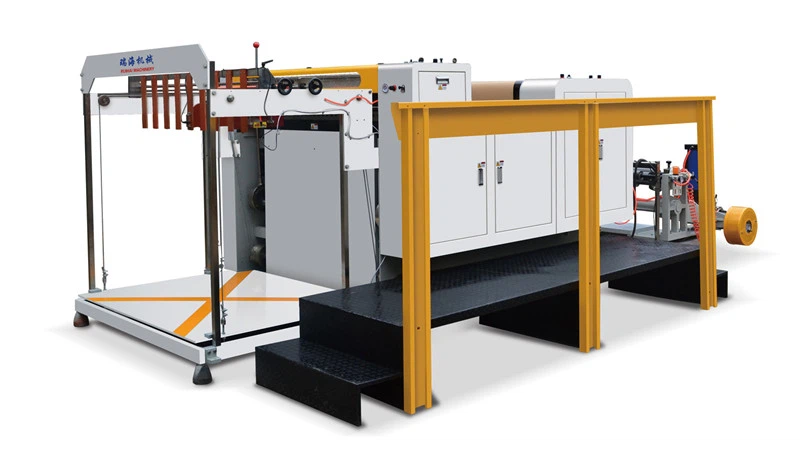

ZHQ-B Machine Cutting Paper
This machine cutting paper is the ideal processing machine for cutting chrome paper, coated paper and kraft paper material into sheet with desired length. It adopts computer control, automatic cutting, reasonable structure, complete functions, simple operation, stable and reliable operation. Vertical multi-section cutting, waste edge is blowing by fan automatically. It is a multifunctional equipment with the features of metering,auto cutting, etc.
1.Adopts pneumatic automatic materials loading system with much easy operation and convenience.
2.Adopts imported heavy vertical type cutters with orderly finished products and without water caltrop; meantime, it can be used for horizontal cutting and vertical cutting at one time ( Optional device ).
3.It has the function of automatic stacking which is in order. Photoelectric auto tracing subtense system.
4.Photo electric tracking suits for printing material ( Optional device ).
Products Description
|
Model |
ZHQ-1100B |
ZHQ-1400B |
|
Max. Width of cutting |
1100mm |
1400mm |
|
Max. Diameter of material |
Φ1400mm |
Φ1400mm |
|
Min. Width of cutting |
50mm |
50mm |
|
Speed |
10-180times/min |
10-180times/min |
|
Precision |
±0.2mm |
±0.2mm |
|
Total Power |
7.5kw |
8.5kw |
|
Weight (approx. ) |
4200kg |
4500kg |
|
Overall dimension (LxWxH) |
5700×2100×1750(mm) |
5700×2300×1750(mm) |
