Slitting Machine
Our goal is to be your true partner in Slitting Machine field in China.Ruihai company has strong technical ability and improve the processing system;has a Preparation of annual output of nearly three hundred sets of various types of packaging equipment capacity.Learning from domestic and foreign.Advanced tech-nology, we combine the market demand,and constantly develop new Packaging equipment.Widely used in paper products and paper,plastic processing industry In addition to selling products Throughout the country,is now part of the exports to Latin America;Southeast Asia and other countries and regions.And achieved a good reputation.
Why Choose Us
High-quality products
Ruihai company is known for producing high-quality products that meet the needs of various industries. Customers can trust the quality of their products.
Competitive pricing
Ruihai company offers competitive pricing for their products and services, which makes them an attractive choice for customers who are looking for cost-effective solutions.
Rich Experience
Ruihai company has a team of experienced professionals who have been working in their respective fields for many years. They have the skills and knowledge required to provide excellent services to their customers.
Professional team
Ruihai company places a high value on customer satisfaction and has a customer service team that is available to assist customers with their needs. They are responsive and helpful, making it easy for customers to do business with them.
Advantages of Slitting Machine
Precision cutting
Slitting machines are capable of consistently and accurately cutting materials into narrow strips with precise width tolerances. This precision is crucial in industries where uniformity and exact dimensions are essential for downstream processes or final product quality.
Increased efficiency
Slitting machines automate the cutting process, which significantly increases production efficiency compared to manual cutting methods. They can handle large rolls of material and cut them into multiple smaller rolls or strips, reducing handling time and labor costs.
Versatility
Slitting machines can process a wide range of materials, including metals, plastics, papers, textiles, and more. They can handle various thicknesses and widths, making them adaptable to different industries and applications.
Waste reduction
By precisely cutting materials into narrower strips, slitting machines help minimize waste. This is especially valuable for expensive materials or in applications where maximizing material usage is crucial for cost-effectiveness.
Enhanced material control
Slitting machines provide better control over the cutting process, ensuring consistent results and minimizing defects. They can handle high-speed cutting without compromising quality.
Flexibility in widths
Slitting machines can be adjusted to produce strips of varying widths, making them suitable for producing a range of products with specific size requirements.
Slitting machines are widely used in textile, printing, packaging and other industries, which can help processors improve production efficiency, reduce labor costs, and ensure product quality and consistency. The automation level of slitting machines is also getting higher and higher. Some advanced slitting machines are also equipped with computer control systems, which can achieve precise cutting and adjustment.
In general, slitting machines are an important industrial equipment that plays an important role in the field of material cutting, helping enterprises improve production efficiency and product quality.

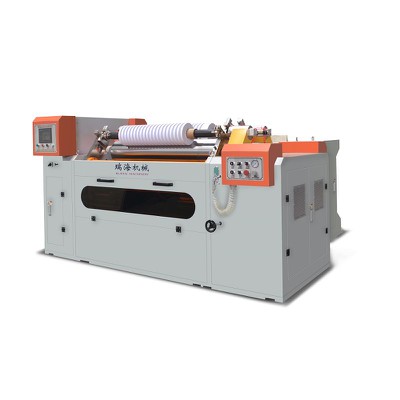

Product Description
|
Model |
WZFQ- 1100A |
WZFQ- 1300A |
WZFQ- 1600A |
|
Max. Width of unwinding |
1100mm |
1300mm |
1600mm |
|
Max. Diameter of unwinding |
Φ1400mm |
Φ1400mm |
Φ1400mm |
|
Min. Width of slitting |
30mm |
30mm |
30mm |
|
Max. Diameter of rewinding |
Φ1000mm |
Φ1000mm |
Φ1000mm |
|
Speed |
10-350m/min |
10-350m/min |
10-350m/min |
|
Total power |
22kw |
24kw |
28kw |
|
Suitable power supply |
380V/50hz |
380V/50hz |
380V/50hz |
|
Weight (approx. ) |
5600kg |
6000kg |
6400kg |
|
Overall dimension(LxWxH) (mm) |
4200x3200x1950 |
4200x3400x1950 |
4200x3700x1950 |
Parameters
|
Product Name |
Slitting machine |
|
|
Material |
Type |
Pre-painted & Galvanized steel coil |
|
Thickness(mm) |
0.2-1.5mm |
|
|
Tield stress(Mpa) |
Q235-345 |
|
|
Width |
Max. 1250mm |
|
|
Max.speed |
Slitting |
20-30m/min |
|
Cutting |
10-15m/min |
|
|
Accuracy |
Slitting |
±0.5mm |
|
Cutting |
±2mm |
|
|
Roller material |
9CrSi |
|
|
Min. slitting width |
60mm |
|
|
Max. slitting no. |
10 strips |
|
|
Roller driven type |
Chain transmission |
|
|
Controller |
PLC |
|
|
Operation |
Touch screen and button |
|
|
Hydraulic system pressure |
12Mpa |
|
|
Main motor power |
3kw |
|
|
Hydraulic station motor power |
3kw |
|
|
Dimension (L*W*H) |
About 15000*1500*1500mm |
|
|
Weight |
About 12000kg |
|
Customization
Customized logo (Min. order: 1 set)
Customized packaging (Min. order: 1 set)
Graphic customization (Min. order: 1 set)
Delivery
|
Selling Units |
Single item |
|
Single package size |
170X130X120 cm |
|
Single gross weight |
600.000 kg |
Lead Time
|
Quantity (sets) |
1 - 1 |
2 - 2 |
3 - 3 |
> 3 |
Quantity (sets) |
|
Lead time (days) |
15 |
20 |
30 |
To be negotiated |
Lead time (days) |
Packaging & Shipping
FAQ
